🛠️ Mastering API 598 II Clauses II Valve Inspection & Testing 🎓

Course Headline:

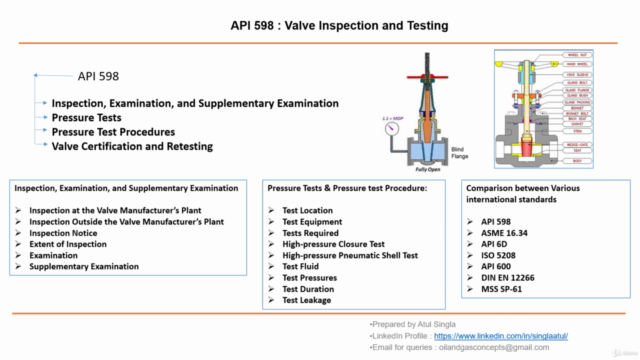

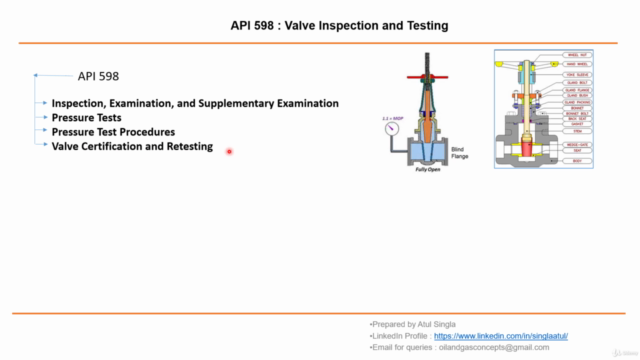

API 598 II Clauses II Valve Inspection & Testing

Course Description:

Welcome to this comprehensive video session where we delve into the intricacies of API 598, a critical standard for ensuring the integrity and performance of valves in various industries. This course is meticulously designed to provide you with a thorough understanding of the inspection, examination, and testing requirements as outlined in API 598. Let's explore the key aspects that make up this essential process.

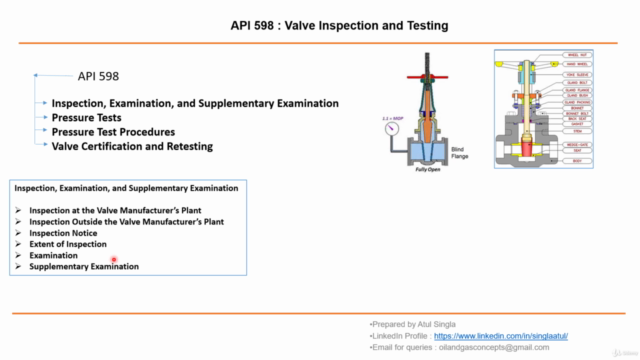

Inspection, Examination, and Supplementary Examination:

Inspection at the Valve Manufacturer’s Plant: Learn about the initial quality check performed at the site where valves are made.
Inspection Outside the Valve Manufacturer’s Plant: Discover how post-delivery inspections ensure that valves meet all necessary specifications upon installation.
Inspection Notice: Understand the importance of proper notification and conditions required for effective on-site inspections.
Extent of Inspection: Dive into the details of what constitutes a complete and thorough inspection process.
Examination: Gain insights into the rigorous examination procedures that follow initial inspections.
Supplementary Examination: Uncover the additional checks that may be necessary to validate valve performance under specific conditions.

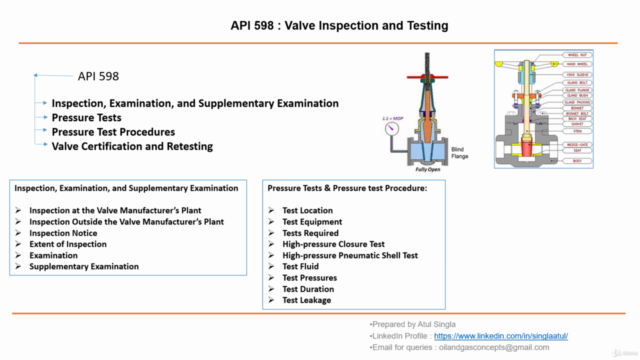

Pressure Tests & Pressure Test Procedure:

Test Location: Identify the optimal settings and considerations for conducting pressure tests.
Test Equipment: Familiarize yourself with the instruments and equipment essential for pressure testing.
Tests Required: Explore the various types of tests mandated by API 598 to ensure valve integrity.
High-pressure Closure Test: Learn how to test the sealing performance of a valve against high-pressure scenarios.
High-pressure Pneumatic Shell Test: Understand the procedure for testing the shell's ability to withstand high-pressure pneumatic conditions.
Test Fluid: Determine the suitable fluids for pressure tests based on the valve type and operating conditions.
Test Pressures: Know the exact pressures that must be achieved and maintained during a test.
Test Duration: Learn the recommended time frames for each test to ensure accuracy and safety.
Test Leakage: Detect and evaluate any leakages from the valve under high-pressure conditions.

Comparison between Various International Standards:

API 598 vs. ASME 16.34 vs. API 6D vs. ISO 5208 vs. API 600 vs. DIN EN 12266 vs. MSS SP-61: Compare and contrast these international standards to understand their applications, scope, and differences in requirements and testing procedures.

FAQs:

What are the key differences between API 598 and API 6D?

Answer: API 598 covers a wide range of valves and specifies different test media like air or intergas, whereas API 6D primarily focuses on safety relief valves and uses air or nitrogen for testing. Additional differences are highlighted in the course.

What is API 598?

Answer: API 598 provides detailed inspection, examination, and testing requirements for resilient-seated, non-metallic-seated, and metal-to-metal-seated gate, globe, plug, ball, check, and butterfly valves.

What is the American Petroleum Institute (API) standard for valves?

Answer: API is a national trade association that represents all aspects of the U.S. oil and natural gas industry. It develops standards like API 598 to ensure the safety, reliability, and efficiency of valves.

How do you perform a valve test?

Answer: A valve seat test is performed by placing the valve under pressure and measuring the amount of leakage from the other side of the valve. This helps in assessing the valve's ability to maintain a seal under various conditions.

What is the latest edition of API 598?

Answer: As of September 2022, the latest edition of API 598 is the 10th Edition, published in October 2016.

By the end of this course, you will have a solid understanding of the critical role API 598 plays in ensuring the reliability and safety of valves within your operations. You'll be equipped with the knowledge to perform inspections and tests in line with international standards, thereby contributing to the overall integrity and performance of the systems you manage or design.
